Pushbuttons, Pilot lights (FUJI): AR22/DR22 series
The AR22/ DR22 now uses a release arm with a wedge mechanism developed by FujiElectric FA. This enables you to mount or remove the operator and contact block without using any tools. When fitting the switch to a panel, you can ignore the panel thickness. You have only to secure the operator with a locking nut from behind the panel without any need for adjustment.

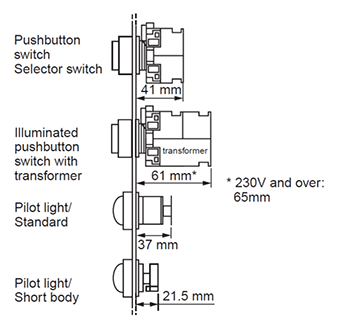

Miniaturization
- Pushbuttons and selector switches with 1NO+1NC: 41mm deep
Pilot lights: 37mm deep - The transformer now occupies far less space.

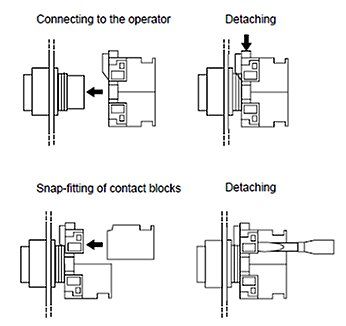

Easy replacing contact block and transformer
- Because of a snap-on mounting, replacement or addition of the contact block and transformer unit is very simple.
- The contact block is common to all the pushbuttons of this series.
- Contact block is easily replaced even when the pushbuttons are mounted closely together.
- Replacement of the contact block can be done with a screwdriver, without the need for any special tool.
